These Explosionproof Explosion Proof Explosion-proof 30 and 15 watts Federal Signal Public Address speakers are UL and cUL Listed for Class 1, Division 1, Groups B, C, and D environments.
1-800-843-6036 |
|
 OnLine Order
Supported Browsers IE, SAFARI, CHROME |
 |
|
|
|
AM302X AudioMaster® Public Address Explosion-Proof 30–Watt Speaker |
AM302X AudioMaster® Public Address Explosion-Proof 30–Watt SpeakerTransformer coupled 30–watts
25 or 70Vrms
Re–entrant horn design
Swivel mount
IP65, NEMA 4X Approved
UL 1480 Approved, cUL Listed
|
|||
|

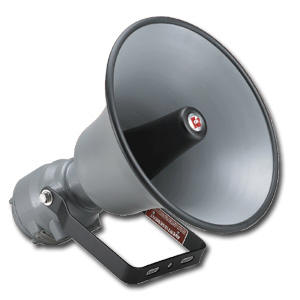

The Federal Signal Model AM300X and the AM302X are transformer coupled, re–entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The speaker wiring connections are enclosed in a dust– and moisture–proof, die–cast aluminum compartment. All external surfaces are sealed with a gray powder coat paint.
Power handling for the AM300X is 15–watts and the AM302X is rated for 30–watts. There are transformer taps at 15, 7.2 and 1 watts for the AM300X and 30, 15 and 8 watts for the AM302X. Both speakers are designed for use in 25 or 70Vrms distributed systems. These speakers are UL and cUL Listed for Class 1, Division 1, Groups B, C, and D environments.
A heavy–duty U–bracket provides simple wall mounting. The unique shape of the speaker projectors provides a 60º sound dispersion. The entire speaker and can be swiveled 180º in order to direct sound effectively.
The AM300X and the AM302X can be used with the AudioMaster® amplifiers and the AudioRouter™ to complete an industrial grade public address system, links shown below.
|
AM300X AudioMaster® Public Address Explosion-Proof 15–Watt SpeakerTransformer coupled
15–watts
25 or 70Vrms
Re–entrant horn design
Swivel mount
IP65, NEMA 4X Approved
UL Fire Listed and CSFM Approved
UL 1480 Approved, cUL Listed
|
|||
|
|
WEB PRICING
| MODEL# | DESCRIPTION | WEB PRICE EACH |
| AM302X | Speaker, 30 watts, explosion-proof, transformer coupled | CONTACT US |
| AM300X | Speaker, 15 watts, explosion-proof, transformer coupled | CONTACT US |
