Model #
20-AMP10UV
- UHF/VHF/FM 10db Amplifier
- Designed for MATV, SMATV and Private and
Wireless Cable applications.
- Provide low noise amplification and are cost
competitive.
|
![](amp_25.jpg)
Model # 20-AMP25
- UHF/VHF/FM 25db Amplifier
- Designed for MATV, SMATV and Private and
Wireless Cable applications.
- Provide low noise amplification and are cost
competitive.
|
![](ILA20WS.jpg)

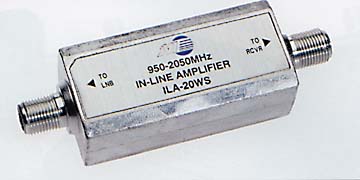

Model # ILA20WS or Model # ILA20W
- ILA20W- Is a 40-2050MHz Inline Amplifier is
built in a diecast Case with 20db Positive gain.
- ILA20WS- Is a 950-2050MHz Inline Amplifier,
Sloped 20db Gain, Solder-Back.
|
![](MDA_20.jpg)
Model # MDA20
- The 20-MDA20 20db gain Multimedia drop amplifier
is a 1GHz active device designed to offer in house solutions for problems
associated with long drops or multiple TV sets.
|
![](RDA_20.jpg)

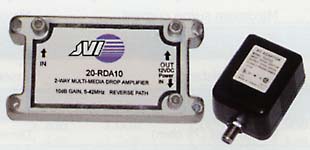

Model # RDA10 or Model # RDA20
- RDA10-10db Also includes a 5-40 MHz
reverse path for 2-way systems (Fax/Voice/Internet.)
- RDA20-20db Also Includes a 5-40 MHz reverse path
for 2-way systems (Fax/Voice/Internet.) These devices offer a virtual
constant gain level.
|
![](TDA15.jpg)
Model # TDA 15
- The TDA15 is a UHF/VHF/FM, 15db, Distribution
Amplifier.
|

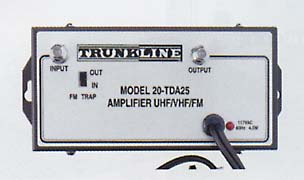

Model # TDA 25
- The TDA25 is a UHF/VHF/FM, 25db, These amplifiers are designed for
MATV, SMATV, and private and Wireless Cable applications.
|
![](TDA_36.jpg)

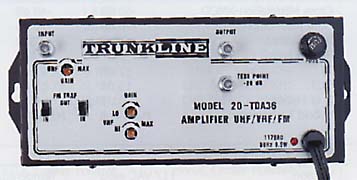

Model # TDA36
- Two switchable FM traps.
- Separate gain controls.
- VHF-high, VHF-low, and UHF.
- AC power indicator.
- 50dB output capability.
- 3-wire AC cord.
- -20dB monitor test point.
- High Gain Low Noise
- amplification circuitry
|
Model #
TR13LA
- The 20-TR13LA is a 950-2050MHz Dual Polarity
Line Amplifier.
|
Model # TR15LE
- The 20-TR15LE is a 950-2050MHz Dual Polarity
Line Extender.
|
![](TR24DLA.jpg)

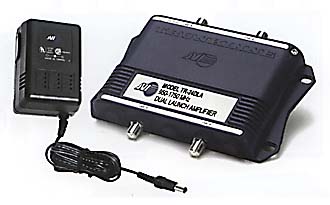

Model # TR24DLA
- The 20-TR24DLA 950-1750MHz Dual
Polarization Launch Amplifier and LNB Power Supply is designed to power
the front end of dual polarized distribution network. Both the (+13) RHCP
and (+17) LHCP inputs provide a regulated DC output to the dual LNB. This
amplifier is cable slope compensated and has a very strong power output.
This unit is ideally suited for yapped trunk applications, and will power
most medium to large scale MDU's
|
![](TR36SLA.jpg)

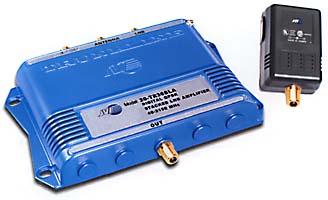

Model # TR36SLA
- The 20-TR36SLA 40-2150 MHz Stacked LNB Launch
Amplifier / LNB Power Supply is designed to power the front end of a
Stacked LNB distribution network. The input provides a regulated +24 DC
output to the stacked LNB. This amplifier is cable slope compensated and
has a very strong power output. Additionally, a 40-806MHz diplexer is
incorporated into the unit for a UHF/VHF or broadband CATV input. This
unit is ideally suited for stacked tapped trunk applications, and is
designed to incorporate the 25-HVS22 (*) wallplate taps. This will power
most medium to large scale MDU's
|
Prices Subject to Change Without Notice.
Product Design and Specifications Subject to Change Without
Notice.
Products May Be Discontinued Without Notice.
