Model # HFS-41 (shown above)

950-2050Mhz Satellite Splitters

• Also Available:
• 25-HFS21, 25-HFS22, 25-HFS42
• Low cost, high performance satellite splitter.
• Heavy duty zinc diecast cases.
• Low insertion loss and high isolation.
• Available in all port power pass and one port power pass.
• Printed circuit board ensures consistent  performance and high port to port isolation.

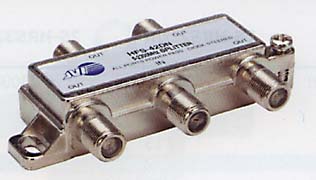

            Model # HFS-42DN   (shown above)

           5-2300Mhz Commercial Grade Splitters

• Also Available:
• 25-HFS22DN, 25-HFS32DN, 25-HFS62DN and  25-HFS82DN
• Precision machine threaded F-ports.
• All ports power passing.
• Diode protected circuit will pass DC power from any output to input.
• There is an 0.8 V drop across the diodes, which are included to prevent one receiver from passing power back to another receiver.
• Tongue/Groove case offers excellent EMI/RFI shielding>-100dB.
• Printed circuit base.
• F-ports are 1" on center to accommodate security tools.
• Corrosion resistant nickel plated zinc diecast housing.

            Hi/Lo Band Seperator

              Model # HLSJ

• The 25-HLSJ is power passing on the Low band.

        Model # HRL2TG (shown above)

         5-1GHz Fax/Voice/Data Grade Splitters

• Also Available, HRL3TG, HRL4TG
• High Return Loss & Isolation >35dB in the 15-40MHz Sub Band.
• 6KV Surge Protection to all ports, ref: IEEE 587 (C62.41-1991) cat A3 standard.
• Precision machine threaded F-Ports.
• Tongue/Groove case offers excellent EMI/RFI shielding >-110dB.
• Printed circuit board.
• F-Ports are 1" on center to accommodate security tools.
• F-Ports comply with SCTE outdoor standards.

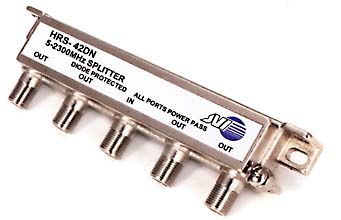

           Model # HRS-42DN   (shown above)

           5-2300MHz Dual Mount Satellite Splitters

         Also Available, HRS22DN, HRS32DN

• The 25-HRS22DN 2-way Dual Mount Splitter, 25-HRS32DN 3-way Dual Mount Splitter and the 25-HRS42Dn 4-way Dual Mount Splitter have been designed to accommodate a variety of design considerations. The mounting tabs allow these devices to be mounted Vertically or Horizontally, with the F-Ports facing up or down. The cases are Tongue/Groove for a high RFI shield (-110dB) and they are completely weatherproof.

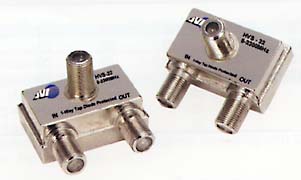

          Model # HVS-22

           5-2300MHz Wall Plate Mount Satellite Taps

• The 25-HVS22(*) is a Tongue/Groove Satellite Wall Plate Tap is designed to be the final drop in an STACKED LNB distribution system. These taps come in a variety of values and are Diode protected. They offer a solution for tight cable bends at the subscriber outlet. These taps are completely shielded from (>-110dB) RFI due to the advanced Tongue/Groove design.

       Model # SPL-41G (shown above)

       1 GHz Solder Backed CATV Splitters

• Also Available SPL21G,  SPL31G,  SPL61G,  SPL81G.
• The SPL21G 2-way Splitter, SPL31G 3-way Splitter (Balanced), SPL41G 4-way Splitter, SPL61G 6-way Splitter and the SPL81G are high end passive products designed with printed circuit boards and next generation Ferrite cores. These splitters are designed to work with the newly upgraded cable plants that are demanding higher bandwidth passives. The solder backed housing provides up to -130 dB Radio Frequency Interference protection.

        Model # SPL-41GDC (shown above)

         Solder Backed/RF & DC Pass Splitters

• Also Available SPL21GDC, SPL31GDC, SPL61GDC, SPL81GDC.
• The SPL21GDC 2-way Splitter, One Port Passive, SPL31GDC 3-way Splitter, One Port Passive, (Balanced), SPL41GDC 4-way Splitter, One Port Power Passive, SPL61GDC 6-way Splitter, One Port Power Passive and the SPL81GDC 8-way Splitter, One Port Power Passive are designed to pass RF and DC power from one input to one output. The most common application is powering an MMDS downconverter by combining a non pre-amped antenna output with a mast mounted pre-amplified output and delivering a single cable to the set top

         Model # SPL4DM (shown above)

        5-1GHz Commercial Trunk Grade Splitters

• Also Available SPL2DM, SPL3DM.
• Patent Pending Dual Mounting Tabs.
• Allows for flexible wiring configurations.
• High Return Loss & Isolation.
• Precision machine threaded F-Ports
• Tongue/Groove case offers excellent EMI/RFI shielded >-110dB.
• Printed circuit board.
• 360 degree sealing base.
• F-Ports are 1" on center to accommodate security tools

          Model # SPL-4U (shown above)

• Also Available SPL2U, SPL3U.

             1 GHz Solder Backed CATV Splitters

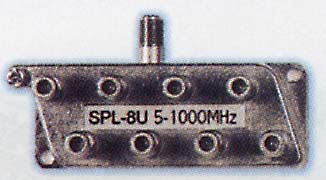

          Model # SPL8U (shown above)

• Also Available SPL6U
• High quality zinc diecast case.
• Includes mounting screws.
• Ideal for MATV, CATV, SMATV, MMDS systems.
• Anticorrosive chromate finish.
• Multiple ferrite cores and capacitors.
• Precision machine threaded ports.
• Grounding lug and screw.
• DC power passing.

                  Model # 25-UVSL

           UVF/VHF BAND SEPARATORS

• Low thru loss
• High rejection
• Zinc diecast housing

            FOR ITEMS NOT LISTED PLEASE CALL TOLL-FREE 1-800-843-6036
