SECURITY CABLE

RETURN TO MIDSOUTHS' MAIN PAGE

STATION WIRE - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6700 M 2 22 SOLID CALL
6772 4 22 SOLID CALL

  • STOCK COLORS:  GRAY, WHITE, BROWN & BEIGE; OTHER COLORS AVAILABLE: BLACK, RED, GREEN, BLUE, ORANGE, YELLOW, PURPLE, PINK

  • COLOR CODE:  1. RED 2. GREEN 3. YELLOW 4. BLACK

  • PUT UPS:  500 FT. SPOOLS OR BOX; 1000 FT. SPOOLS OR BOX;  500 FT. SIGNA-COIL BAGS

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER LIMITED CONTROL CIRCUITS.

  • PLENUM: Available on the above items/Call for pricing & availability

TWO CONDUCTOR - TWISTED PAIR BURGLAR ALARM WIRE - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6600 2 22 SOLID CALL
6601 2 22 STRANDED CALL
6602 2 20 STRANDED CALL
6603 2 19 SOLID CALL
6604 2 18 STRANDED CALL
6605 2 16 STRANDED CALL
6614 2 14 STRANDED CALL
6612 2 12 STRANDED CALL

  • COLOR CODE:  BOTH CONDUCTORS WHITE OR BROWN

  • CONSTRUCTION:  1 CONDUCTOR IS BARE COPPER, 1 CONDUCTOR IS TIN COPPER

  • PLENUM: Available on the above items/Call for pricing & availability

SPEAKER CABLE - ZIP CORD PARALLEL - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING COLOR PRICE
6300-A 2 24 STRANDED CLEAR, WHITE & BROWN CALL
6301-A 2 22 STRANDED CLEAR, WHITE & BROWN CALL
6302-A 2 20 STRANDED CLEAR, WHITE & BROWN CALL
6310-A 2 18 STRANDED CLEAR, WHITE & BROWN CALL
6305-A 2 16 STRANDED CLEAR, WHITE & BROWN CALL

  • OTHER COLORS AVAILABLE,  CUSTOM ORDER MINIMUM QUANTITY 25,000 FT.

  • POLARITY: 1 CONDUCTOR TIN COPPER,  1 CONDUCTOR BARE COPPER

  • PLENUM: Available on the above items/Call for pricing & availability

TWO CONDUCTOR TWISTED PAIR OVERALL SHIELD - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6921-1 2 22 SOLID CALL
6921 2 22 STRANDED CALL
6922-1 2 20 SOLID CALL
6922 2 20 STRANDED CALL
6923 2 18 STRANDED CALL
6924 2 16 STRANDED CALL
6914 2 14 STRANDED CALL
6912 2 12 STRANDED CALL

  • CONDUCTORS:  (1) BLACK  (2) RED, BARE COPPER, PVC INSULATION, CABLED PVC JACKET-GRAY,  OTHER COLOR JACKETS AVAILABLE ON REQUEST.

  • PLENUM: Available on the above items/Call for pricing & availability

TWO CONDUCTOR UNSHIELDED - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6700 2 22 SOLID CALL
6701 2 22 STRANDED CALL
6702 2 20 STRANDED CALL
6223 2 19 SOLID CALL
6704-1 2 18 SOLID CALL
6704 2 18 STRANDED CALL
6705 2 16 STRANDED CALL
6714 2 14 STRANDED CALL
6227 2 12 STRANDED CALL

  • CONDUCTORS:  (1)BLACK  (2) RED BARE COPPER, PVC INSULATION, CABLED PVC JACKET-GRAY. OTHER COLOR JACKETS AVAILABLE AND IN STOCK.

  • PLENUM: Available on the above items/Call for pricing & availability

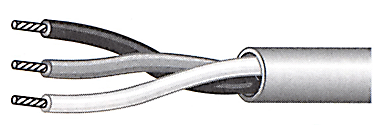

THREE CONDUCTOR UNSHIELDED - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6706 3 22 SOLID CALL
6707 3 22 STRANDED CALL
6725 3 20 STRANDED CALL
6233 3 19 SOLID CALL
6237 3 18 SOLID CALL
6711 3 18 STRANDED CALL
9484 3 16 STRANDED CALL
6236 3 14 STRANDED CALL
6238 3 12 STRANDED CALL

  • DESCRIPTION:  BARE COPPER, PVC INSULATION, CABLED PVC JACKET.  TINNED COPPER VERSIONS AVAILABLE UPON REQUEST.

  • COLOR CODE:  (1)BLACK  (2)RED  (3)WHITE

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER LIMITED CONTROL CIRCUITS.

  • PLENUM: Available on the above items/Call for pricing & availability

Call Us Toll Free At 1-800-843-6036

Place On-Line Order E-Mail Us MidSouth's Home Page

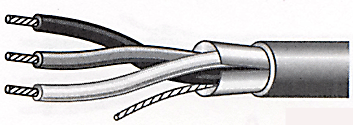

THREE CONDUCTOR OVERALL SHIELD - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6706 SJ 3 22 SOLID CALL
6707 SJ 3 22 STRANDED CALL
6708 SJ 3 20 SOLID CALL
6725 SJ 3 20 STRANDED CALL
6711 SJ 3 18 STRANDED CALL
9484 SJ 3 16 STRANDED CALL
6236 SJ 3 14 STRANDED CALL

  • DESCRIPTION:  BARE COPPER, PVC INSULATION, CABLED PVC JACKET.  TINNED COPPER VERSIONS AVAILABLE UPON REQUEST.

  • COLOR CODE:  (1)BLACK  (2)RED  (3)WHITE

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER LIMITED CONTROL CIRCUITS.

  • SHIELD:  ALUMINUM MYLAR AND DRAIN WIRE

  • PLENUM: Available on the above items/Call for pricing & availability

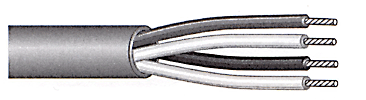

FOUR CONDUCTOR UNSHIELDED - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6709 4 22 STRANDED CALL
6710 4 20 STRANDED CALL
6243 4 19 SOLID CALL
6713 4 18 STRANDED CALL
6249 4 18 SOLID CALL
6718 4 16 STRANDED CALL
6246 4 14 STRANDED CALL
6248 4 12 STRANDED CALL

  • DESCRIPTION: BARE COPPER, PVC INSULATION, CABLED PVC JACKET

  • COLOR CODE:  RED, BLACK, WHITE AND GREEN.

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER  LIMITED CONTROL CIRCUITS.

  • PLENUM: Available on the above items/Call for pricing & availability

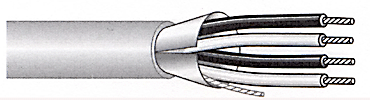

FOUR CONDUCTOR OVERALL SHIELDED - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
8010 SJ 4 22 SOLID T.C. CALL
6709 SJ 4 22 STRANDED CALL
6710 SJ 4 20 STRANDED CALL
6713 SJ 4 18 STRANDED CALL
6718 SJ 4 16 STRANDED CALL

  • DESCRIPTION: BARE COPPER, PVC INSULATION, CABLED PVC JACKET

  • COLOR CODE:  RED, BLACK, WHITE AND GREEN.

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER  LIMITED CONTROL CIRCUITS.

  • SHIELD:  ALUMINUM MYLAR AND DRAIN WIRE.

  • PLENUM: Available on the above items/Call for pricing & availability

MULTIPLE CONDUCTORS 22 GAUGE (SOLID) UNSHIELDED - UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6715-1 5 22 SOLID CALL
6712 6 22 SOLID CALL
6721-1 8 22 SOLID CALL
6738-1 10 22 SOLID CALL
6723-1 12 22 SOLID CALL
6574 15 22 SOLID CALL
6575 20 22 SOLID CALL
6576 25 22 SOLID CALL

  • DESCRIPTION:  BARE COPPER, PVC INSULATION, CABLED PVC JACKET

  • COLOR CODE:   1) BLACK,   2) RED,   3) GREEN,   4) WHITE,  5) BROWN,  6) BLUE,  7) ORANGE,  8) YELLOW,                 9) PURPLE,    10) GRAY,  11) PINK,  12) TAN          13 THRU 25-SOLID COND. & STRIPE

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER LIMITED CONTROL CIRCUITS.

  • PLENUM: Available on the above items/Call for pricing & availability

MULTIPLE CONDUCTORS- STRANDED UNSHIELDED  UL LISTED

CATALOG NO. NO. OF CONDUCTORS AWG SIZE & STRANDING PRICE
6716 5 22 STRANDED CALL
6720 6 22 STRANDED CALL
6721 8 22 STRANDED CALL
6738 10 22 STRANDED CALL
6723 12 22 STRANDED CALL
6726 16 22 STRANDED CALL
6728 20 22 STRANDED CALL
6729 25 22 STRANDED CALL
6730 5 20 STRANDED CALL
6748 6 20 STRANDED CALL
6263 7 20 STRANDED CALL
6750 8 20 STRANDED CALL
6264 9 20 STRANDED CALL
6751 10 20 STRANDED CALL
6265 12 20 STRANDED CALL
6266 15 20 STRANDED CALL
6731 5 18 STRANDED CALL
8690 6 18 STRANDED CALL
6281 7 18 STRANDED CALL
6733 8 18 STRANDED CALL
6282 9 18 STRANDED CALL
9158 10 18 STRANDED CALL
9741 12 18 STRANDED CALL
6284 15 18 STRANDED CALL

  • DESCRIPTION:  BARE COPPER, PVC INSULATION, CABLED PVC JACKET

  • COLOR CODE:  1) BLACK,  2) RED,  3) GREEN,   4) WHITE,  5) BROWN,  6) BLUE,  7) ORANGE,  8) YELLOW,    9) PURPLE,    10) GRAY,  11) PINK,  12) TAN          13 THRU 25-SOLID COND. & STRIPE

  • APPLICATION:  SECURITY SYSTEMS, INTERCOM SYSTEMS, BACKGROUND MUSIC, SOUND & AUDIO, POWER LIMITED CONTROL CIRCUITS.

  • PLENUM: Available on the above items/Call for pricing & availability
