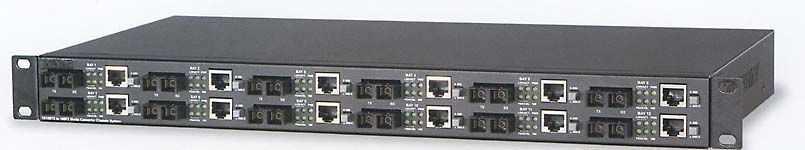

| The Signamax™ 065-1200
12-Channel Rack Mount Media Converter is a perfect solution for high
installations that utilize may of the same type of media converters.
The 065-1200 contains 12 channels of media conversion in a standard rack
mountable case only one rack unit high. This extremely high port
density allows the maximum number of media converter channels per rack for
enterprise-level businesses and carriers. Redundant fan-cooled power
supplies ensure system uptime. The 065-1200 has a choice of configurations, utilizing the same technology and connector types as the standalone media converters in the 065-1100 series for 10/100BaseT/TX to 100BaseFX conversion. In addition, the 065-1200 can be optionally equipped with twelve channels of Gigabit Ethernet 1000BaseT to 1000BaseSX media conversion, emulating twelve 065-1195 converters. |
Need
Enclosures/Cabinets? Click Here
| SIGNAMAX™ 12-PORT RACK MOUNT MEDIA CONVERTER | |
| PART NO. | DESCRIPTION |
| 065-1200ST00 |
10/100BaseT/TX to 100BaseFX Converters ST Multimode |
| 065-1200SC10 |
10/100BaseT/TX to 100BaseFX Converters SC Multimode |
| 065-1200VF70 | 10/100BaseT/TX to 100BaseFX Converters VF-45 Multimode |
| 065-1200MT72 | 10/100BaseT/TX to 100BaseFX Converters MT-RJ Multimode |
| 065-1200LC74 |
10/100BaseT/TX to 100BaseFX Converters LC Multimode |
| 065-1200SC20 | 10/100BaseT/TX to 100BaseFX Converters SC Singlemode (15 km span) |
| 065-1200SC20ED |
10/100BaseT/TX to 100BaseFX Converters SC Singlemode (40 km span) |
| 065-1200SC20XLD | 12-Channel 10/100BaseT/TX to 100BaseFX SM/SC, 75km |
| 065-1200SC95 | 12-Channel 1000BaseT to 1000BaseSX MM/SC |
| 065-1200ST00DC | 12 Channel 10/100BaseT/TX to 100BaseFX MM/ST, 2km, 48V DC |
| 065-1200SC10DC | 12-Channel 10/100BaseT/TX to 100BaseFX MM/SC, 2km, 48V DC |
| 065-1200VF70DC | 12-Channel 10/100BaseT/TX to 100BaseFX MM/VF-45, 48V DC |
| 065-1200MT72DC | 12-Channel 10/100BaseT/TX to 100BaseFX MM/MT-RJ, 48V DC |
| 065-1200LC74DC | 12-Channel 10/100BaseT/TX to 100BaseFX MM/LC, 2km, 48V DC |
| 065-1200SC20DC | 12-Channel 10/100Base T/TX to 100BaseFX SM/SC, 15 km, 48V DC |
| 065-1200SC20EDDC | 12-Channel 10/100BaseT/TX to 100BaseFX SM/SC, 40 km, 48V DC |
| 065-1200SC20XLDDC | 12-Channel 10/100BaseT/TX to 100BaseFX SM/SC, 75 km |
| 065-1200-SC95DC | 12-Channel 1000BaseT to 1000BaseSX MM/SC, 48V DC |
|
Please see specification table for additional configurations. |
|
|
SPECIFICATIONS |
| APPLICABLE STANDARDS IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3u 100BaseFX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX FIXED PORTS Twelve channels of media conversion, each with a twisted pair port and a corresponding fiber optic port meeting either of the following specifications: 065-11xx series version: 10/100BaseT/TX to 100BaseFX, multimode fiber; choice of SC, ST, VF-45 or MT-RJ connectors; maximum distance: 2,000 meters 10/100BaseT/TX to 100BaseFX, singlemode fiber, SC connectors; MT-RJ connectors available by special order. Maximum distance: up to 75 kilometers LED STATUS INDICATORS: Per unit - Power status, Speed (2 LEDs) Per port - LNK/ACT, FDX/COL (2 LEDs) 065-1195 version: 1000BaseT to 1000BaseSX, multimode fiber, SC connectors; MT-RJ connectors available by special order. Maximum distance, 1000BaseSX port: 220 meters over 62.5 micron multimode fiber or 550 meters over 50/125 micron multimode fiber (full duplex only). LED STATUS INDICATORS: Per unit - Power status, FDX/COL, TX, RX (4 LEDs) Per port - LNKF for fiber port, LNKC for copper port (1 LED each) PHYSICAL CHARACTERISTICS Dimensions: W440mm x D205mm x H45mm (17.3" x 8.0" x 1.8") Weight: 3.1 kg (6.8 lbs.) maximum Standard 19-in. rack mounting (hardware included) SAFETY UL 1950 WARRANTY Lifetime, including power supplies |
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-1200ST00 | $2040.00 | $1938.00 |
| 065-1200SC10 | $2040.00 | $1938.00 |
| 065-1200VF70 | $2700.00 | $2565.00 |
| 065-1200MT72 | $2900.00 | $2755.00 |
| 065-1200LC74 | $2900.00 | $2755.00 |
| 065-1200SC20 | $5000.00 | $4750.00 |
| 065-1200SC20ED | $6500.00 | $6175.00 |
| 065-1200SC20XLD | $13000.00 | $12350.00 |
| 065-1200SC95 | $4700.00 | $4465.00 |
| 065-1200ST00DC | $2040.00 | $1938.00 |
| 065-1200SC10DC | $1900.00 | $1805.00 |
| 065-1200VF70DC | $2700.00 | $2565.00 |
| 065-1200MT72DC | $2900.00 | $2755.00 |
| 065-1200LC74DC | $2900.00 | $2755.00 |
| 065-1200SC20DC | $5000.00 | $4750.00 |
| 065-1200SC20EDDC | $6500.00 | $6175.00 |
| 065-1200SC20XLDDC | $13000.00 | $12350.00 |
| 065-1200-SC95DC | $4700.00 | $4465.00 |
|
