SIGNAMAX™ 2-, 4- & 6-PORT KVM SWITCHES

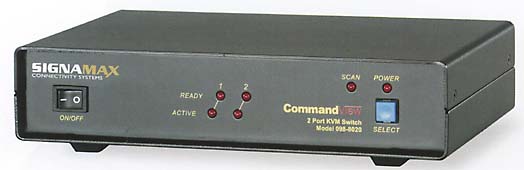

2-Port KVM Switch -- PC-AT and PS/2

Model #098-8020

4-Port KVM Switch - PC-AT and PS/2

Model #098-8040

6-Port KVM Switch - PS/2 Only

Model #098-6060

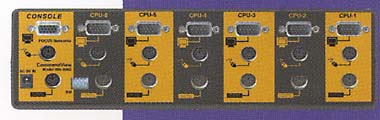

The rear panel of Model 098-8060

Model #098-8060 (Rear Panel)

Signamax™ Connectivity Systems' CommandView is the perfect solution for convenient control of up to six computers from just one keyboard, monitor, and mouse.  Quick, simple connection and you're in control.  No software required; completely plug and play.  Select any computer with push-button ease.  Auto Scan at user-selectable intervals.  Dedicated keyboard and mouse emulation.  Intelligent mode operation ensures each keyboard's LED status and typematic rates are automatically restored.



KVM SWITCHES
PART NO. DESCRIPTION
098-8020 2-Port KVM Switch -- PC-AT and PS/2
098-8040 4-Port KVM Switch - PC-AT and PS/2
098-8060 6-Port KVM Switch - PC-AT and PS/2



SPECIFICATIONS
SELECTION METHOD
    Push-button or keyboard hot keys.  Automatic or manual scan between powered-on computers; user selectable intervals.  Audio alert to confirm switching

BANDWIDTH
    350 MHz per port, all models

CONNECTIONS
     Model 098-8020:
      (Console) - Video [15-pin female], PS/2 Mouse [6-pin mini-DIN female], AT Serial Mouse [DB-9], AT Keyboard [5-pin DIN female].  (CPU 1 & 2) -- Video [15-pin male], PS/2 Mouse [6-pin mini-DIN female], AT Serial Mouse [DB-9 female], AT Keyboard [5-pin DIN female].  One (1) PS/2 Keyboard Adapter [6-pin mini-DIN female to 5-pin DIN male].  Adapter included in package.

     Model 098-8040:

    (Console) - Video [15-pin female], PS/2 Mouse [6-pin mini-DIN female], PS/2 Keyboard [6-pin mini-DIN female], AT Keyboard [5-pin DIN female].  (CPU 1-4) -- Video [15-pin male], PS/2 Mouse [6-pin-mini-DIN female], AT Serial Mouse [DB-9 female], AT Keyboard [5-pin DIN female], PS/2 Keyboard [6-pin mini-DIN female].

     Model 098-8060:
     (Console) - Video [15-pin female], PS/2 Mouse [6-pin mini-DIN female], PS/2 Keyboard [6-pin mini-DIN female],  (CPU 1-6) -- Video [15-pin male], PS/2 Mouse [6-pin-mini-DIN female],  PS/2 Mouse [6-pin mini-DIN female], PS/2 Keyboard [6-pin mini-DIN female].

     MOUSE SUPPORT
      Model 098-8020:  PC-AT & PS/2 mouse at console and CPUs
      Model 098-8040:  PS/2 mouse at console, PC-AT & PS/2 mouse at CPUs; Microsoft Intellimouse supported
       Model 098-8060:  PS/2 mouse only

WARRANTY
        Five years, including powers supply

PRICING

PART #

1+ EACH

3+ EACH
098-8020 $117.00 $108.81
098-8040 $189.00 $175.77
098-8060 $221.00 $205.53
098-8010 $51.00 $47.43

CALL US TOLL FREE:  1-800-843-6036

ON LINE ORDER MORE NETWORK CONNECTIVITY SYSTEMS EMAIL US midsouthcable.com Home Page

Prices Subject to Change Without Notice.

Product Design and Specifications Subject to Change Without Notice.
