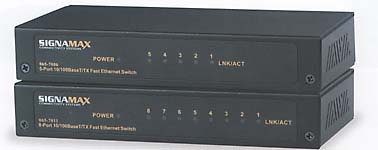

SIGNAMAX™ 5 & 8 PORT 10/100 ETHERNET SWITCHES |
|
Signamax™ Connectivity Systems' Desktop Ethernet Switches makes it easy to increase user capacity and let 10 and 100 Mbps devices directly communicate with each other. Full duplex mode multiplies total network capacity by providing up to 200 Mbps bandwidth per port rather than sharing 100 Mbps bandwidth between hub users, and segments networks for improved performance by forwarding traffic only to the users to whom the message was sent. Auto-sensing speed feature automatically handles both 10 Mbps and 100 Mbps users. State-of-the-art switches provides a straightforward upgrade from hub-based shared Ethernet using your existing investment in hardware, cabling and personnel training. By combining simple installation with dual-speed flexibility and scalable expansion, Signamax™ Ethernet switches virtually guarantee high network performance. Now in an even more compact size for easy placement. |
Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE??
DIDN'T FIND WHAT YOU WERE LOOKING FOR? NEED MORE OPTIONS?
| 10/100 ETHERNET SWITCH | |
| PART NO. | DESCRIPTION |
| 065-7006 | 5-Port 10/100BaseT/TX Desktop Ethernet Switch |
| 065-7011 | 8-Port 10/100Base T/TX Desktop Ethernet Switch |
Need
Enclosures/Cabinets? Click Here
|
SPECIFICATIONS |
| APPLICABLE STANDARDS |
| IEEE 802.3 10BaseT |
| IEEE 802.3u 100BaseTX |
| IEEE 802.3x Flow Control |
| ANSI/EEE 802.3 NWay Auto-negotiation |
PORTS |
| Model 065-7005: |
| 5 - RJ-45 10/100BaseT/TX Auto-MDI ports (IEEE 802.3 10BseT; 802.3u 100BaseTX) |
Model 065-7010: |
| 8- RJ-45 10/100BseT/TX Auto-MDI ports (IEEE 802.3 10BaseT; ;802.3u 100BaseTX |
PERFORMANCE |
| Throughput: 148,809 pps (64-bye packets) |
| Switch Fabric Speed: |
| Model 065-7005: 1.0 Gbps |
| Model 065-7010: 1.6 Gbps |
PHYSICAL CHARACTERISTICS |
| Dimensions: W 160mm x D81mm x H28mm (6.3 x 3.2 x 1.1 in) both models Desktop or wall mounting, via slots in case |
| Weight: 420 g. (0.92 lbs.), both models |
LED STATUS INDICATORS |
| Per Switch: Power, Per Port: Link/Activity |
SAFETY: |
| Power Supply UL & cUL listed |
WARRANTY: |
| Five years, including power supply |
|
Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE?? |
|
|
|
|
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-7006 | $40.00 | $37.20 |
| Discontinued - Available while supplies last - Replaced with 065-7007 View alternative options | ||
| 065-7011 | $50.00 | $46.50 |
|
Discontinued - Available while supplies last - Replaced with 065-7012 View alternative options |
||
| 065-7007 | $40.00 | $37.20 |
| 065-7012 | $50.00 | $46.50 |
