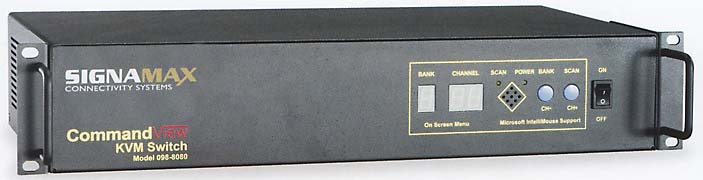

SIGNAMAX™ 8-PORT CASCADABLE KVM SWITCH |
|
Model 098-8080
Signamax™ Connectivity Systems' CommandView offers on-screen control in a full-featured, high performance KVM Switch. The on-screen display feature makes it easy to configure and control up to 64 computers from just one standard monitor, keyboard and mouse. Each computer system can be named making it easy to know which particular computer is currently under user control. This switch expands to 8 banks of 8 CPUs each using the included daisy chain cable; no CPU ports are lost to expansion. Individual port processors for flawless CPU booting. Automatically scan each computer at user selectable intervals. Dedicated keyboard and mouse emulation. Intellimouse support plus PS/2 mouse conversion makes CommandView fully compatible with both PS2 and AT style computers. |
| 8-PORT KVM SWITCH | |
| PART NO. |
DESCRIPTION |
| 098-8080 | 8-Port KVM Switch on On-Screen Control - PC-AT and PS/2 |
Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE??
|
SPECIFICATIONS |
| SELECTION METHOD |
| Push-button, keyboard hot keys, or On-Screen Display (OSD) menu |
|
Automatic or manual scan between powered-on computers; user selectable
intervals. Audio alter to confirm switching. |

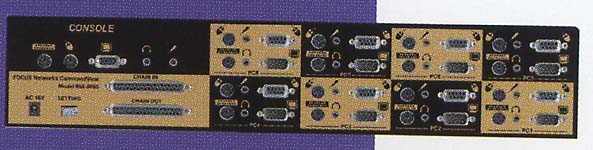

| CONNECTIONS |
|
CONSOLE -- HDB15female / mini DIN6 female / mini DIN6 female; 3.5mm Stereo
socket (audio) / 3.5mm Mono socket (microphone) |
|
PC PORTS -- HDB15 male / mini DIN6 female / mini DIN6 female / DB9 female;
3.5mm Stereo socket (audio) / 3.5mm Mono socket |
|
SLAVE OPERATION -- DB37female; daisy chain cable included. Supports up
to 8 levels; maximum 64 PCs |
| MOUSE SUPPORT |
| PC-AT, PS/2 Keyboard, PS/2 Mouse including MS IntelliMouse. |
|
Supports MS Serial Mouse via conversion; only PS/2 Mouse is needed for
console |
| ON-SCREEN DISPLAY |
|
Control any connected PC with user-definable channel names up to eight
characters long |
| WARRANTY |
| Five years, including power supply |
PRICING
|
PART # |
1+ EACH |
3+ EACH |
|
098-8080 |
$528.00 | $491.04 |
