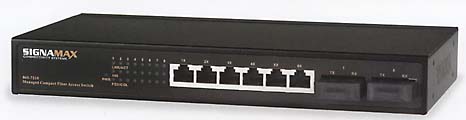

SIGNAMAX™ MANAGED COMPACT FIBER ACCESS SWITCH |
|
Signamax™ Connectivity Systems' Managed Compact Fiber Access Switch provides the capabilities that are needed for mission-critical fiber-extended networks. The 065-7210 series of switches allows redundant path fiber extension to small workgroups and Programmable Logic Controller (PLC) clusters with automatic failover. These switches support a complete SNMP management and monitoring package to safely extend management capabilities and advanced internetworking features over fiber to workgroups, smaller campus buildings, and production or control machinery equipped with PLCs at Fast Ethernet speeds. Tagged VLAN and Quality of Service (Qos) packets are fully supported by these switches to allow administrative and production networks to coexist on the same redundant fiber link. |
|
065-7210 SWITCHES |
|
|
PART NO. |
DESCRIPTION |
| 065-7210SC | Multimode Managed Compact Fiber Access Switch -- SC |
| 065-7210ST | Multimode Managed Compact Fiber Access Switch - ST |
| 065-7210MT | Multimode Managed Compact Fiber Access Switch -- MT-RJ (Special Order) |
| 065-7210VF | Multimode Managed Compact Fiber Access Switch - VF-45 (Special Order) |
| 065-7210SM | Singlemode Managed Compact Fiber Access Switch -- SC (Special Order) |
| 065-7210SMED | Singlemode Managed Compact Fiber Access Switch - SC (Special Order) |
| 065-7210SMXLD | Singlemode Managed Compact Fiber Access Switch - SC (Special Order) |
|
SPECIFICATIONS |
|
| APPLICABLE STANDARDS | |
| IEEE 802.3 10BaseT | |
| IEEE 802.3u 100BaseTX | |
| IEEE 802.37 100BaseFX | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1p Priority (Classification of Service [Cos]) | |
| IEEE 802.1D Spanning Tree | |
| IEEE 802.1Q Tagged VLAN | |
| IEEE 802.3ad Ling Aggregation | |
|
|
|
| PORTS | |
| Models 065-7210SC, 065-7210ST, 065-7210LC, 065-7210MT & 065-7210VF: | |
| 2- | Fixed 100BaseFX port, SC multimode (model 065-7210SC), ST multimode (model 065-7210ST), LC multimode (model 065-7210LC), MT-RJ multimode (model 065-7210MT), or VF-45 multimode (model 065-7210VF) connectors. (IEEE 802.3u Type 100BaseFX) Maximum Distance: 2,000 meters with 62.5/125 micron or 50/125 micron multimode fiber cabling |
| 6- | Fixed 10/100BaseT/TX ports, RJ-45 connectors; Additional RJ-45 connector (IEEE 802.3u Type 10BaseT & 100BaseTX) |
|
|
|
| Models 065-7210SM, 065-7210SMED, & 065-7210SMXLD: | |
| 2-
|
Fixed 100BaseFX port, SC singlemode connector. (IEEE 802.3u Type 100BaseFX) Maximum distance: Model 065-7210SM: 15 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling; Model 065-7210SMED: 75 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling; Model 065-7210SMXLD: 75 kilometers with 9/125 micron or 10/125 micron singlemode fiber cabling |
| 6-
|
Fixed 10/100BaseT/TX ports, RJ-45 connectors (IEEE 802.3u Type 10BaseT & 100BaseTX) |
| 1- | RS-232C DB-9 local console serial port (Default Parameters: 115,200 bps, 8 data bits, no parity, 1 stop bit) |
|
|
|
| LED STATUS INDICATORS | |
|
Power, Link/Activity, 100Mbps, Full
Duplex/Collision |
|
| PERFORMANCE | |
| Throughput: 148,810 packets per second (pps) at 100 Mbps, 14,800 pps at 10 Mbps (64-byte packets) | |
| Switch Fabric | |
| Speed: | 1.6 Gbps. |
| Address Table Size: | 12K MAC addresses |
|
|
|
| MANAGEMENT: Console port access via RS-232 cable, Telnet remote access, SNMP agent, and Web browser. Kermit/TFTP software-upgrade capability | |
|
|
|
| PHYSICAL CHARACTERISTICS | |
| Dimensions: W254mm x D135mm x H35mm (10 x 5.3 x 1.4 in.) Weight: 1.6 kg (3.5 lbs) | |
|
EMISSIONS |
|
| FCC part 15 Class A | |
| CE Mark Class B | |
|
MOUNTING |
|
| Desktop or wall mounting | |
|
SAFETY |
|
| UL 1950 | |
|
WARRANTY |
|
| Five years, including power supply | |
|
Need INDUSTRIAL GRADE RATED NETWORKING PRODUCTS? LOW PRICE?? |
|
|
|
|
PRICING
|
PART # |
1+ EACH |
3+ EACH |
| 065-7210SC | $970.00 | $902.10 |
| 065-7210ST | $970.00 | $902.10 |
| 065-7210MT | $970.00 | $902.10 |
| 065-7210VF | $970.00 | $902.10 |
| 065-7210SM | $1,550.00 | $1,441.50 |
| 065-7210SMED | $1,998.00 | $1,858.14 |
| 065-7210SMXLD | $2,998.00 | $2,788.14 |
