The Stealth-Flex System combines high security perimeter fence protection intrusion detection  alarm system at an affordable cost for a wide range of applications.

High Security
Easy to Install
Multiple Applications

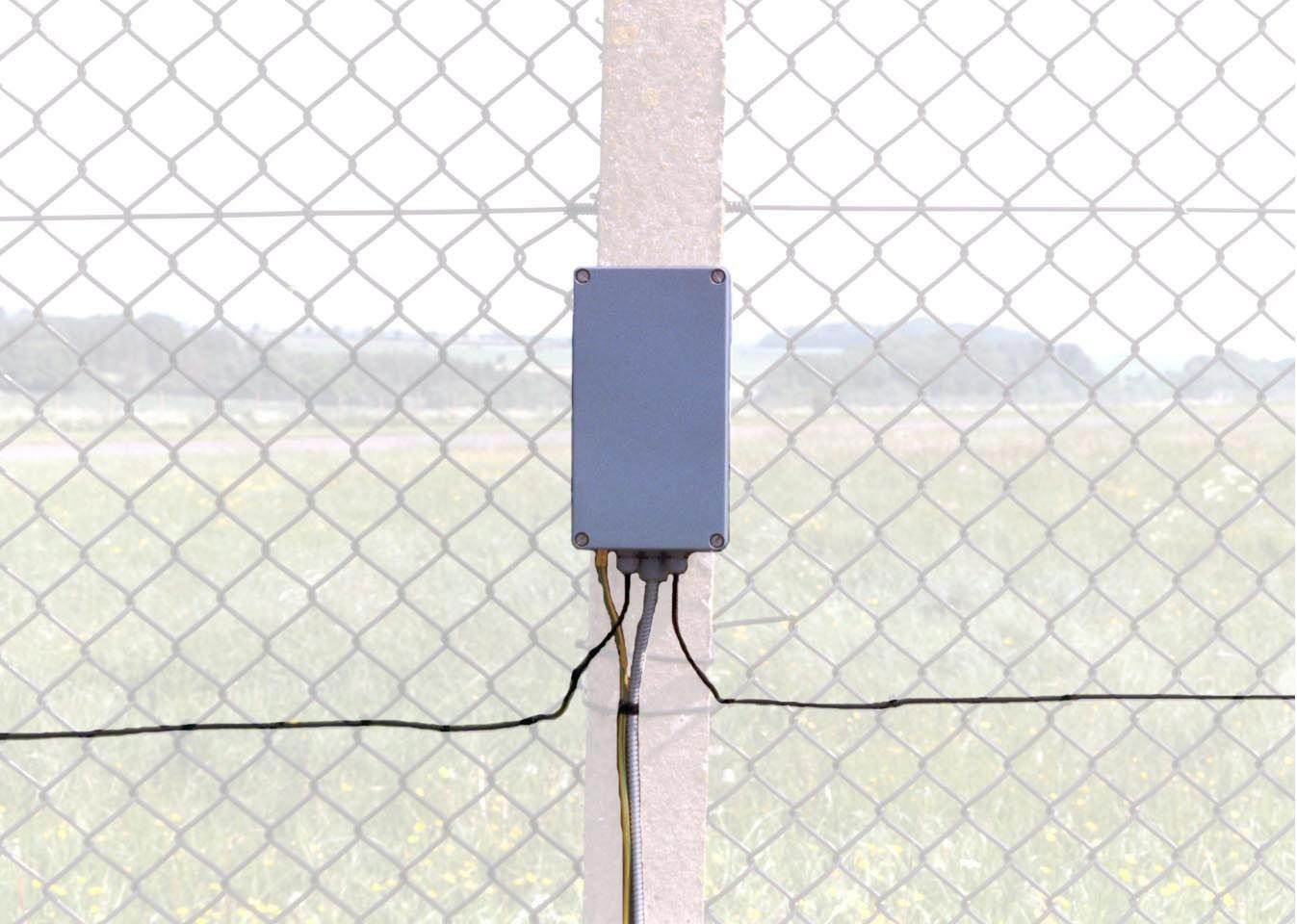

The analyzer is available in a NEMA-4 standard environmental housing for attachment directly to a fence post.

Perimeter fence protection intrusion detection alarm system at an affordable cost for a wide range of applications. Easy Simple to Install.

Simple to install.   Economical cost effective.  High Security. Multiple Applications may include  Airports, mini-storage mini storage, prisons, car lots, homes, government commercial locations, water treatment plants.

Perimeter fence protection intrusion detection alarm system at an affordable cost for a wide range of applications. Easy Simple to Install.

Perimeter fence protection intrusion detection alarm system at an affordable cost for a wide range of applications. Easy Simple to Install.

The Stealth-Flex System combines high security perimeter fence intrusion detection protection at an affordable cost for a wide range of applications.

About Stealth-Flex

The Stealth-Flex Fence Protection System consists of a sensitive cable, using state of the art microphonic technology to provide detection of intruders’ attempts to climb or cut the fence. The cable is resistant to false alarms from environmental influences and unaffected by heat, UV light and moisture.

Stealth-Flex microphonic cable is attached to the fence, using simple cable ties. The analyzer is available in a NE-MA standard environmental housing for attaching directly to a fence post or in a sturdy metal can for indoor installation. On detecting an alarm condition, the analyzer activates a Form C relay that can be connected to any alarm panel, cellular transmitter or other device.

The analyzer’s sophisticated electronics allow simple yet precise adjustment of sensitivity to meet the requirements of any installation. The Stealth-Flex system is ideal for high security applications, while its low cost and simplicity of installation allow its use in a variety of locations not previously considered for this kind of protection.

Simple to Install

The Stealth-Flex is available as a complete kit, protecting 1,000 feet (SF-1000) or 2,000 feet (SF-2000). The kit includes cable, analyzer and end-of-line termination kit. The cable is easily attached to the fence, using cable ties, permitting a much faster installation than shock sensor based systems. Sensitivity and pulse count adjustment is facilitated by a bar display.

High Security

Stealth-Flex detects attempts to climb, cut or other-wise damage the fence. Cutting the cable itself will generate a tamper or intruder alarm.

Tried and Tested

Stealth-Flex microphonic cable protects many high security locations, both government and commercial around the world.

fence perimeter protection system sensitive cable
Planning Guide

A typical Stealth-Flex installation consists of sensitive cable, one or more analyzer units and one or more end of line termination kits. The system requires a clean linear 12V DC power supply. For best performance we recommend a Stealth Labs PS-1213CT or PIB-1213 power supply. Other accessories are added where required.

Installations of less than 1,000 feet of sensitive cable require a single zone analyzer (AN-1000) located at one end of the cable. The analyzer may be indoors, in which case a length of non-sensitive coax cable is connected between the end of the sensitive cable, or outdoors, fixed to a fence post or other suitable location. On detection of an alarm, the analyzer’s Form C contact will change state. This contact is typically connected to a control panel zone and the system is armed and disarmed by means of the control panel.

Installations of more than 1,000 feet require a dual zone analyzer (AN-2000). This is typically located where up to 1,000 feet of sensitive cable can be led in each direction along the fence.

If access to gates is required while the system is armed, a bypass switch may be required. The BPS-1 allows the gate to be bypassed manually.

The Wireless Stealth-Flex System    Wireless Perimeter Fence Sensor Intrusion Detection Security Alarm System. Wireless Communication Stealth-Flex Fence System

The Stealth-Flex Fence Intrusion Detection Alarm System

SF-1000 Kit for 1000 feet. Includes 1000 feet of sensitive cable, single zone analyzer in 7 x 8 x 3½ inch metal can, end of line termination kit.

SF-1001 Same as SF-1000, analyzer mounted in NEMA-4 standard outdoor box.

SF-2000 Kit for 2000 feet. Includes 2000 feet of sensitive cable, single zone analyzer in 7 x 8 x 3½ inch metal can, end of line termination kit.

SF-2001 Same as SF-2000, analyzer mounted in NEMA-4 standard outdoor box.

AN-1000 Single zone analyzer for up to 1000 feet of sensitive cable. In 7 x 8 x 3½ inch metal can.

AN-1001 Same as AN-1000, mounted in NEMA-4 standard outdoor box.

AN-2000 Dual zone analyzer for up to 2000 feet of sensitive cable. In 7 x 8 x 3½ inch metal can.

AN-2001 Same as AN-2000, mounted in NEMA-4 standard outdoor box.

SC-1000 1000 feet of sensitive cable.

SC-500 500 feet of sensitive cable.

NC-100 Non-sensitive coaxial cable, 100 foot reel.

EOL-1 End of line termination kit in weatherproof box.

JB-1 Junction box.

BPS-1 Bypass switch. Allows manual bypass of gates, etc.

CT-1000 Cable ties, UV stabilized. Bag of 1,000.

fence protection detection perimeter 2000 ft with dual zone analyzer. the gate bypass kit

End-Of-Line Termination Kit in Weatherproof Box for fence perimeter protection detection security

If access to gates is required

while the system is armed, a

bypass switch may be required.

The BPS-1 allows the gate to be

bypassed manually, while the

BPS-2 is operated remotely by

means of a relay.



Perimeter fence protection intrusion detection protection alarm system at an affordable cost for a wide range of applications.

*WEB PRICING

PART# Description *Web Price Each
SF-500 Kit: 500FT Cable, 1 Zone Analyzer, EOL Termination Kit contact us
SF-501 AS SF-500, in NEMA-4 Outdoor Box contact us
SF-1000 Kit: 1000FT Cable, 1 Zone Analyzer, EOL Termination Kit contact us
SF-1001 AS SF-1000, in NEMA-4 Outdoor Box contact us
SF-1000DZ Kit: 1000FT Cable, 2 Zone Analyzer, 2 EOL Termination Kit contact us
SF-1001DZ AS SF-1000DZ, in NEMA-4 Outdoor Box contact us
SF-2000 Kit: 2000FT Cable, 2 Zone Analyzer, EOL Termination Kit contact us
SF-2001 AS SF-2000, in NEMA-4 Outdoor Box contact us
AN-1000 Single Zone Analyzer up to 1000ft contact us
AN-1001 AS AN-1000, in NEMA 4 Outdoor Box contact us
AN-2000 DUAL ZONE Analyzer up to 1000FT contact us
AN-2001 As AN-2000 in NEMA-4 Outdoor Box contact us
SC-1000 1000FT of Sensitive Cable contact us
SC-500 500FT of Sensitive Cable contact us
NC-100 Non-Sensitive Cable 100FT contact us
EOL-1 End-Of-Line Termination Kit in Weatherproof Box contact us
JB-1 Junction Box contact us
BPS-1 Bypass Switch for Gates etc. contact us
CBT-1000 Bag of 1000 UV Stabilized cable ties contact us
SF-Recorder Diagnostic Tool, 2 minute alarm audio recorder contact us
