Plenum and PVC Riser Access Control Wire and Cable Listed Below.

Access Control Wire Cable Plenum PVC Riser. Access Control Wires Cables Composite Design in Plenum and PVC.

 Access Control Cable

Plenum and Riser PVC

This Access Control Wire Cable is a composite design in both plenum and riser pvc. This Access Control Wires Cables has 4 components in the composite design that are required for card reader readers, door contact contacts, locking power and retinal scanners in facilities such as educational government manufacturing commercial and distribution facilities campus campuses  that require security access control.

Access Control Cable

Plenum and Riser PVC

Plenum and PVC Riser Access Control Wire and Cable Listed Below.

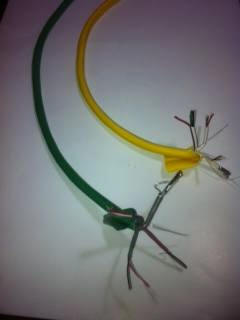

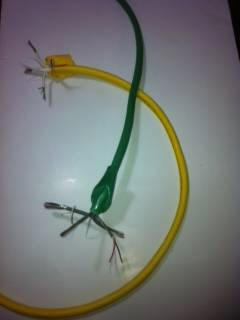

Plenum Access Control Wire Cable Plenum

Plenum composite Access Control Cable

(3) Multiconductor Cables (1) Multi-Pair Cable Overall LS PVC Jacket
60°C 300V Type CMP

*Price per 500ft Reel @ $459.00

Product Construction
Conductor: Stranded Bare Copper
Insulation: LS PVC
Jacket: Yellow LS PVC
Rating: NEC Article 800 Type CMP/CL2P RoHS Compliant
Standard Lengths: 500’ & 1000’ Reels

Part

#

Overall Nominal O.D.

Component No.

Component Description Conductor Colors

Component Nominal O.D.

Insulation Thickness

Jacket Color

P23994001

.480

1

18 AWG 4 COND White, Red, Black, Green

.183

.008

White/Purple Stripe

2

22 AWG 3 PR SHLD Black/Red, White/Green. Brown/Orange

.168

.008

White/Yellow Stripe

3

22 AWG 2 COND Black, Red

.128

.008

White/Green Stripe

4

22 AWG 4 COND White, Black, Red, Green

.138

.008

White/Red Stripe

Standard Lengths: 500’ & 1000’ Reels

Rating: NEC Article 800 Type CMP/

CL2P RoHS Compliant





Access Control Cable - Riser

PVC Riser composite Access Control Cable

(3) Multiconductor Cables (1) Multi-Pair Cable Overall PVC Jacket
60°C 300 V Type CMR

*Price Per 500FT @ $299.00

Product Construction
Conductor: Stranded Bare Copper
Insulation: PVC
Jacket : Green PVC
Standard Lengths: 500’ & 1000’ Reels
Rating: NEC Article 800 Type CMR/CL2R RoHS Compliant



Part

#

Overall Nominal O.D.

Component No.

Component Description Conductor Colors

Component Nominal O.D.

Insulation Thickness

Jacket Color

R24995002

.480

1

18 AWG 4 COND White, Red, Black, Green

.183

.008

White/Purple Stripe

2

22 AWG 3 PR
SHLD
Black/Red, White/Green. Brown/Orange

.168

.008

White/Yellow Stripe

3

22 AWG 2 COND Black, Red

.128

.008

White/Green Stripe

4

22 AWG 4 COND White, Black, Red, Green

.138

.008

White/Red Stripe



Standard Lengths: 500’ & 1000’ Reels

Rating: NEC Article 800 Type CMR

CL2R RoHS Compliant



This Access Control Wire Cable is a composite design in both plenum and riser pvc. This Access Control Wires Cables has 4 components in the composite design that are required for card reader readers, door contact contacts, locking power and retinal scanners in facilities such as educational government manufacturing commercial and distribution facilities campus campuses that require security access control.  This Access Control Wiring Cabling is designed for easy installation.

Access Control Wire Cable Overall Jacket Color Coding and Application of Component

Jacket Color

Component

Component Description

Application

White/Purple Stripe

1

18 AWG 4 COND

Lock Power

White/Yellow Stripe

2

22 AWG 3 PR SHLD

Card Reader

White/Green Stripe

3

22 AWG 2 COND

Door Contact

White/Red Stripe

4

22 AWG 4 COND

Rex/Spare



Access Control Wire Cable Plenum PVC Riser. Access Control Wires Cables Composite Design in Plenum and PVC.  Access Control Wiring Cabling in Plenum and Riser PVC

This Access Control Wire Cable is a composite design in both plenum and riser pvc. This Access Control Wires Cables has 4 components in the composite design that are required for card reader readers, door contact contacts, locking power and retinal scanners in facilities such as educational government manufacturing commercial and distribution facilities campus campuses  that require security access control.

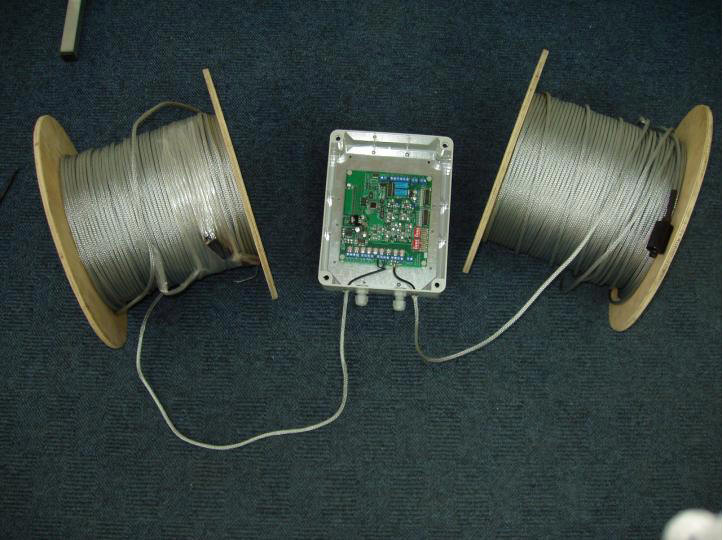

Perimeter Protection Fence Security System Systems Outdoor Electronic Intrusion Detector Detection System Systems Ironclad Micalert dual zone
