Innerduct type Smoothwall Smooth-Wall Smooth Wall innerduct hdpe conduit duct Smooth Wall HDPE Innerduct Duct Conduit Pipe in SDR 11 & SDR 13.5 for Fiber Optic Cable Protection.

midsouthcable.com midsouth wire and cable company

Perma-Guard Smoothwall Smooth-Wall Smooth Wall innerduct hdpe conduit duct is made in accordance with ASTM F2160 from high density polyethylene per ASTM D 3350, see specification PS-100 for more specification details. Ideally suited due to its excellent tensile strength for subdividing larger conduits by being pulled in as an innerduct, can be directionally bored, plowed and pull plowed.



smooth wall smoothwall smooth-wall hdpe innerduct conduit duct duraline arnco Perma-Guard Smoothwall is made in accordance with ASTM F2160 from high density polyethylene per ASTM D 3350, see specification PS-100 for more specification details. Ideally suited due to its excellent tensile strength for subdividing larger conduits by being pulled in as an innerduct, can be directionally bored, plowed and pull plowed.

Smooth Wall HDPE Innerduct Duct Conduit

Smoothwall Innerduct and Conduit

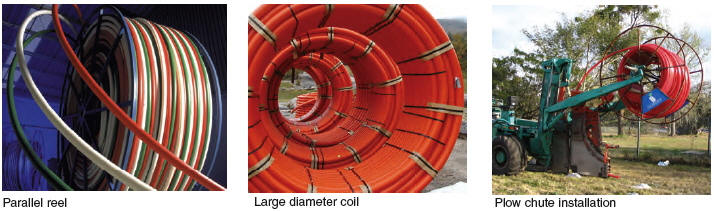

  • 1” through 1 ½” innerduct available in custom cut lengths and parallels
  • Larger diameter pipe available for custom length and parallel orders
  • Standard reels in larger diameter are available
  • High strength HDPE to endure heavy loads.
  • Long-term strength for increased life and performance.
  • Moisture proof and water tight.
  • Easily plowed or directional drilled into the ground or pulled through existing conduit.
  • Joined by either heat fusion or mechanical fittings and couplings.
  • Quick turn around on custom orders.
  • Additional sizes and wall thicknesses available  including SCH 40, SCH 80, SDR 9 and AWWA rated pipe.
  • Several colors available in stock and custom colors available*
  • *Minimum order quantities may apply





EMAIL OR CALL US FOR PRICING AND AVAILABILITY

1-800-843-6036

Email Us

    OnLine Order





More Duct Solutions

Innerduct type Smoothwall Smooth-Wall Smooth Wall innerduct hdpe conduit duct Smooth Wall HDPE Innerduct Duct Conduit Pipe in SDR 11 & SDR 13.5.

Item #

Description

Size

Material

Outside Diameter

Inside Diameter

Web Price

Shipping Method

1SDR11 1" SDR 11 Smooth wall Innerduct 1 in HDPE 1.315 in 1.07 in QUOTE LTL
1SDR135 1" SDR 13.5 Smooth-wall Innerduct 1 in HDPE 1.315 in 1.12 in QUOTE LTL
125SDR11 1 1/4" SDR 11 Smoothwall Innerduct 1-1/4 in HDPE 1.66 in 1.34 in QUOTE LTL
125SDR135 1 1/4" SDR 13.5 Smooth wall Innerduct 1-1/4 in HDPE 1.66 in 1.39 in QUOTE LTL
15SDR11 1 1/2" SDR 11 Smooth-wall Innerduct 1.5 in HDPE 1.90 in 1.53 in QUOTE LTL
15SDR135 1 1/2 SDR 13.5 Smoothwall Innerduct 1.5 in HDPE 1.90 in 1.6 in QUOTE LTL
2SDR11 2" SDR 11 Smooth wall Innerduct 2 in HDPE 2.375 in 1.91 in QUOTE LTL
2SDR135 2" SDR 13.5 Smooth-wall Innerduct 2 in HDPE 2.375 in 2 in QUOTE LTL
3SDR11 3" SDR 11 Smoothwall Innerduct 3 in HDPE 3.50 in 2.86 in QUOTE LTL
3SDR135 3" SDR 13.5 Smooth wall Innerduct 3 in HDPE 3.50 in 2.87 in QUOTE LTL
4SDR11 4" SDR 11 Smooth-wall Innerduct 4 in HDPE 4.50 in 3.68 in QUOTE LTL
4SDR135 4" SDR 13.5 Smoothwall Innerduct 4 in HDPE 4.50 in 3.83 in QUOTE LTL
5SDR11 5" SDR 11 Smooth wall Innerduct 5 in HDPE 5.563 in 4.55 in QUOTE LTL
5SDR135 5" SDR 13.5 Smooth-wall Innerduct 5 in HDPE 5.563 in 4.73 in QUOTE LTL
6SDR11 6" SDR 11 Smoothwall Innerduct 6 in HDPE 6.625 in 5.42 in QUOTE LTL
6SDR135 6" SDR 13.5 Smoothwall Innerduct 6 in HDPE 6.625 in 5.64 in QUOTE LTL





EMAIL OR CALL US FOR PRICING AND AVAILABILITY

1-800-843-6036

Email Us

    OnLine Order





More Duct Solutions

Innerduct type Smoothwall Smooth-Wall Smooth Wall innerduct hdpe conduit duct Smooth Wall HDPE Innerduct Duct Conduit Pipe in SDR 11 & SDR 13.5.
