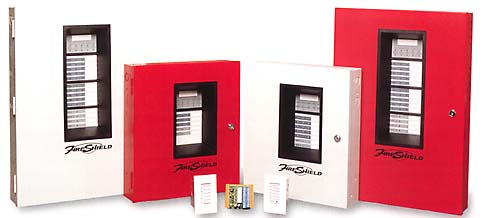

The Edwards FireShield Fire alarm Family consists of: 3, 5, & 10 zone conventional fire alarm control Panels.

FireShield Panels are powerful enough to meet the demands of today's installations while leaving plenty of room to grow.

Edwards Fire Shield incorporates features designed to simplify installation, operation and maintenance.  These include front panel programming, one person walk testing, and selectable IDC and NAC styles.  In addition, each IDC can be programmed for one of eight types including water flow and supervisory.

Options for the Fire Shield panels include serial bus relay modules programmable for common or zone activation, serial bus remote annunciators, city tie and reverse polarity modules, and optional trim rings for semi-flush mounting.  An optional fully integrated DACT/Dialer provides 32 character LCD display, event history log, supports both contact ID and 4/2 formats, and upload/download of Panel/DACT configuration, status and event history.

Fire Shield panels are powerful enough to meet the demands of today's installations while leaving plenty of room to grow in the future.

• UL, ULC & CSFM Listed, MEA Approved
• Available in three, five, and ten Style B initiating device circuit (IDC) models
• 2 or 4 Style Y notification appliance circuits
• IDC or NAC convertible to Class A circuits (ten and five zone panels only) without additional modules
• Supports ED2M, SC Series and 2400 Series detectors.  A complete list of  cross-listed smoke detectors is available  on request.
• Genesis option provides precision strobe synchronization and audible silence over two wires without additional modules
• IDC programmable for alarm verified or alarm non-verified, water flow or supervisory condition
• Programmable NACs individually selectable for Genesis, continuous or temporal output
• One man walk test (audible or silent)
• Optional serial bus relay modules are programmable for common or zone activation
• Expandable transformer adds 2.5 amps to ten zone panel
• On-board relays for alarm, supervisory and trouble conditions
• Optional full integrated DACT/Dialer - event history log, upload/download of configuration, status and event history, and supports contact ID and 4/2 formats

The EBPS Booster Power Supply is a cost-effective solution for cost-effective solution for applications that demand extra device power.  Both the 10 amp and 6.5 amp models feature a battery charger that accommodates up to two 12 volt 10 AH batteries.  Each Booster includes four independent 3 amp Notification Appliance Circuits (NACs), two of which can be designated as auxiliary outputs.  Included is a feature that opens the main panel's NAC on a fault condition, eliminating the need to wire a separate trouble contact back to the control panel.

CAT.NO.

Description

System Voltage

IDC/Style

NAC/Style

NAC/Power Outputs

AUX Power Outputs

Alarm Verify

$399.99 Each

24V DC

3:B

2:Y

1.5A

0.5A

Program

$469.99 Each

24V DC

5:B, 2:D

2:Y,1:Z

2.5A

0.5A

Program

$669.99 Each

24V DC

10:B, 5:D

4:Y, 2:Z

2.5A**

0.5A

Program

$769.99 Each

24V DC

-

4:Y, 2:Z

6.5A Total

2;3 Amp

-

$869.99 Each

24V DC

-

4:Y, 2:Z

10.0A Total

2;3 Amp

-
