H-Tap Crimp Tool with 'O' and 'D' Nose Dies. Mechanical Crimper for WR Series & H Tap Connectors

Mechanical Crimper for WR Series & H Tap Connectors

 Mechanical Lug Crimpers Forged 500 MCM Crimper 500mcm tool

Mechanical Lug Crimper Forged 500 MCM 500MCM

Mechanical Lug Crimpers Cast Housing 250 MCM 250mcm

Mechanical Lug Crimpers Cast Housing 250 MCM
Mechanical Lug Crimpers Forged Housing 250 MCM 250mcm Crimper Tool

Mechanical Lug Crimpers Forged Housing 250 MCM



H-Tap Crimp Tool with 'O' and 'D' Nose Dies. Mechanical Crimper for WR Series & H Tap Connectors

Mechanical Crimper for WR Series & H Tap Connectors

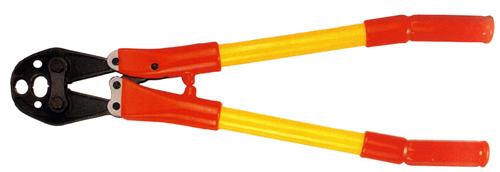

H-Tap Crimp Tool with 'O' and 'D' Nose Dies



Our best and most versatile H-Tap Wire Crimp Tool.

  • Mechanical Crimper for WR Series & H Tap Connectors
  • H-Tap Wire Crimp Tool Designed for crimping a wide range of overhead service entrance connections, overhead splices, & overhead taps
  • D3 die groove serves as a die seat for W type dies
  • Easy to use MD-6 type ‘POP’ tool
  • H-Tap Wire Crimp Tool has bent fiberglass handle provides a solid grip, good leverage, & better durability than wood
  • Complete crimps are assured with an over-center cam mechanism
  • Tool can easily be checked visually for proper adjustment & can be adjusted with an allen wrench
  • Output Force: 4.5 ton
  • U-BG Die for #6 - #8 H-Taps & Entrance Splicers sold separately
  • Weight: 6.2lbs.
  • Length: 23.6”
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece



Mechanical Crimper for WR Series & H Tap Connectors

H-Tap Crimp Tool with 'O' and 'D' Nose Dies

Cat No Description Min
Order
Qty		 *Price
HT83093 H-tap crimp tool with ‘O’ & ‘D’ nose dies 1 Piece $457.8600
98273H U-BG Die #6 - #8 (not included with tool) 1 Piece $71.2200

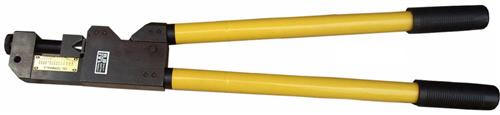

Mechanical Lug Crimpers Forged 500 MCM Crimper 500mcm tool

500 MCM Mechanical Lug Crimper For Aluminum & Copper Lugs

Buy One Tool - No Dies To Order, No Dies to Lose

Our 500 MCM Mechanical Lug Crimper is a great value.

  • 500 MCM Mechanical Lug Crimper For Aluminum & Copper Lugs
  • Buy One Tool - No Dies To Order, No Dies to Lose
  • 500 MCM Mechanical Lug Crimper Costs Less Than Expensive Hydraulic Tools
  • Quality Construction - High Strength Steel Body
  • Adjustable Indentor to Cover a Wide Array of Wire Ranges and Types of Copper and Aluminum Lugs and Splices
  • Nest and Indentor Made of High Strength Steel for Durability
  • Small Head - Convenient in Small Areas
  • All Tools Have Rubber Handle Grips
  • Model #50008 has a Pull-Out Handle Design which Provides Increased Leverage
  • At 500 MCM, Model #50008 Requires Less Handle Load Than 250MCM Tools Require at 250 MCM
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece
500 MCM Mechanical Lug Crimper For Aluminum & Copper Lugs
Cat No Wire Range Housing Length Weight Min
Order
Qty		 *Price
837273-500 8 - 500 AWG AL, 8 - 500 MCM CU Forged 25” 9.0 lbs. 1 Piece $523.0650
978611500 50008 Bolt & V Part Replacement - - - 1 Piece $54.0600

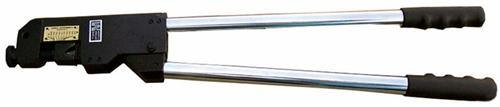

Mechanical Lug Crimpers Cast Housing 250 MCM 250mcm

Mechanical Lug Crimpers Cast Housing 250 MCM

This Cast Housing Lug Crimper can perform a number of jobs.

  • Cast Housing Lug Crimper For Aluminum & Copper Lugs
  • Buy One Tool - No Dies To Order, No Dies to Lose
  • Cost Less Than Expensive Hydraulic Tools
  • Cast Housing Lug Crimper made with Quality Construction - High Strength Steel Body
  • Adjustable Indentor to Cover a Wide Array of Wire Ranges and Types of Copper and Aluminum Lugs and Splices
  • Nest and Indentor Made of High Strength Steel for Durability
  • Small Head - Convenient in Small Areas
  • All Tools Have Rubber Handle Grips
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece

Mechanical Lug Crimpers Cast Housing 250 MCM

Cat No Wire Range Housing Length Weight Min
Order
Qty		 *Price
827341250 8 - 4/0 AWG AL, 8 - 250 MCM CU Cast 22” 6.2 lbs. 1 Piece $202.9950
88237127 50010 Bolt Part Replacement - - - 1 Piece $14.0400
978636746 50010 V Part & Screw Assembly - - - 1 Piece $17.0100

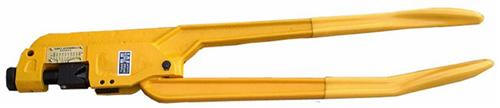

Mechanical Lug Crimpers Forged Housing 250 MCM 250mcm Crimper Tool

Our 250 MCM Forged Housing Lug Crimper is tough and durable for any kind of job.

Our 250 MCM Forged Housing Lug Crimper is tough and durable for any kind of job.

  • 250 MCM Forged Housing Lug Crimper For Aluminum & Copper Lugs
  • Buy One Tool - No Dies To Order, No Dies to Lose
  • 250 MCM Forged Housing Lug Crimper Costs Less Than Expensive Hydraulic Tools
  • Quality Construction - High Strength Steel Body
  • Adjustable Indentor to Cover a Wide Array of Wire Ranges and Types of Copper and Aluminum Lugs and Splices
  • Nest and Indentor Made of High Strength Steel for Durability
  • Small Head - Convenient in Small Areas
  • All Tools Have Rubber Handle Grips
  • Order Qty of 1 = 1 Piece
  • Minimum Order Qty = 1 Piece

Mechanical Lug Crimpers Forged Housing 250 MCM

Cat No Wire Range Housing Length Weight Min
Order
Qty		 *Price
71Y8388 8 - 4/0 AWG AL, 8 - 250 MCM CU Forged 23.4” 7.7 lbs. 1 Piece $268.6050
457553 50015 Bolt Part Replacement - - - 1 Piece $23.8500
48482101 50015 V Part Replacement & Screw Assembly - - - 1 Piece $23.8500
