Type W Cable Wire Cord Portable Power Cable Type W. 2000 Volt 2000V Type W Cable Wire Cord.
Type W Cable Cord Wire for use in Industrial and light and medium mining applications.
Type W Cable Wire Cord for use in Heavy duty service and as temporary power supply cable cord wire Type W.

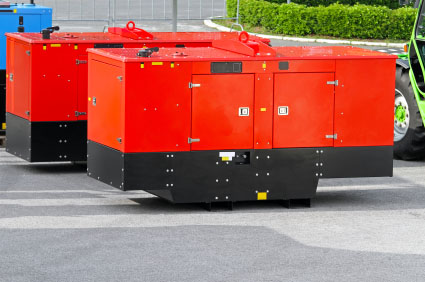

Type W Portable Power Cord Cable Wire for use in Motor, battery and generator lead leads.



Type W Cable Cord Wire in Single Conductor and Multi-Conductors and AWG.

Type W Cable Cord Wire in 8 6 4 2 1 AWG 1/0 2/0 3/0 4/0 250 350 500 MCM 250MCM 350MCM 500MCM



Single Conductor Type W Cable        Multi-Conductor Type W Cable



midsouthcable.com midsouth wire and cable company

Type W Cable Cord Wire Portable Power

Type W Portable Power Cable Cord Wire

Type W Single Conductor Portable Power Cable Cord

Type W 4C Cable Cord Wire Portable Power Cable



EMAIL OR CALL US FOR PRICING AND AVAILABILITY

1-800-843-6036

Click Here to Email Us

   OnLine Order

More Industrial Cable Solutions



EMAIL OR CALL US FOR PRICING AND AVAILABILITY



Multi-Conductor Type W Cable Listed Below.

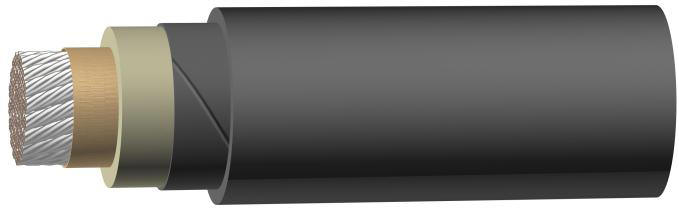

Type W Single Conductor Cable Cord Wire

8AWG 6AWG 4AWG 2AWG 1/0 2/0 4/0 AWG 250 350 500 MCM 250MCM 350MCM 500MCM

Type W Cable Cord Wire Portable Power Cable - Type W

2000 Volt UL  -40C to +90C
EPR Insulation, CPE Jacket
Single, Flexible Copper Conductor

Catalog Number Size AWG/kcmil *No. of Strands  *Overall Diameter Inch  *Net Weight Lbs/Mft
Type W 8AWG-1C 8 133 0.44 155
Type W 6AWG-1C 6 259 0.53 267
Type W 4AWG-1C 4 259 0.6 369
Type W 2AWG-1C 2 259 0.66 458
Type W 1/0-1C 1/0 259 0.79 658
Type W 2/0-1C 2/0 259 0.81 730
Type W 4/0-1C 4/0 259 0.95 1049
Type W 250MCM-1C 250 627 1.08 1425
Type W 350MCM-1C 350 855 1.2 1971
Type W 500MCM-1C 500 1235 1.34 2651

WE CAN:
Cut to your length requirements**
Ship to your Job Site
Ship from Warehouses Nation-Wide





Type W Cable Cord Wire Application:

Type W Portable power cable designed for heavy duty temporary or permanent use where maximum resistance to flex fatigue is required.  Type W Cable Cord Wire applications  in extremely demanding situations including trailing cable on mobile mining equipment, diesel electric locomotives, lifting magnets, cranes, cutters, loaders, conveyors, drills and pumps where grounded circuits are not required. For use in circuits not to exceed 2000 volts.



*Conductor:

Soft bare annealed copper, rope stranded

*Insulation:

Ethylene propylene rubber (EPR)



*Jacket:

Chlorinated polyethylene (CPE) rubber



*Flame Tests:

MSHA flame test



*Additional Standards:

MSHA approved



*Note:

Sizes 1/0 AWG and larger are non-UL constructions made in accordance with applicable industry standards.











Type W Multi-Conductor 2C 3C 4C 5C Cable Cord Wire

8 6 4 2 1 1/0 2/0 3/0 4/0 AWG 250MCM 350MCM 500MCM

Type W Cable Wire Cord. Round Portable Cable Wire Cord Type W

2000 Volt UL, -40C to +90C
EPR Insulation  CPE Jacket
Multiple Flexible Copper Conductors



Type W Multi-Conductor 2C 3C 4C 5C Cable Cord Wire

8 6 4 2 1 1/0 2/0 3/0 4/0 AWG 250MCM 350MCM 500MCM

Catalog Number Size AWG/kcmil  No. of Conductors  *No. of Strands  *Overall Diameter Inch  *Net Weight Lbs/Mft
Type W 8AWG-2C 8 2 133 0.82 385
Type W 8AWG-3C 8 3 133 0.93 590
Type W 8AWG-4C 8 4 133 1.01 715
Type W 8AWG-5C 8 5 133 1.06 812
Type W 6AWG-2C 6 2 133 0.91 480
Type W 6AWG-3C 6 3 133 1.02 775
Type W  6AWG-4C 6 4 133 1.11 935
Type W 6AWG-5C 6 5 133 1.21 1094
Type W  4AWG-2C 4 2 133 1.02 665
Type W 4AWG-3C 4 3 133 1.11 980
Type W 4AWG-4C 4 4 133 1.22 1200
Type W 4AWG-5C 4 5 133 1.39 1506
Type W 2AWG-2C 2 2 259 1.23 1015
Type W 2AWG-3C 2 3 259 1.3 1380
Type W 2AWG-4C 2 4 259 1.39 1680
Type W  2AWG-5C 2 5 259 1.61 2239
Type W 1AWG-2C 1 2 259 1.42 1195
Type W 1AWG-3C 1 3 259 1.48 1705
Type W 1AWG-4C 1 4 259 1.62 2213
Type W  1AWG-5C 1 5 259 1.91 2800
Type W 1/0-2C 1/0 2 259 1.52 1500
Type W  1/0-3C 1/0 3 259 1.61 2165
Type W 1/04-C 1/0 4 259 1.76 2693
Type W 1/0-5C 1/0 5 259 2.03 3065
Type W 2/0-2C 2/0 2 259 1.62 1805
Type W 2/0-3C 2/0 3 259 1.72 2520
Type W 2/0-4C 2/0 4 259 1.89 3326
Type W 2/0-5C 2/0 5 259 2.18 3775
Type W 3/0-2C 3/0 2 259 1.74 2075
Type W 3/0-3C 3/0 3 259 1.85 3180
Type W 3/0-4C 3/0 4 259 2.03 4068
Type W 3/0-5C 3/0 5 259 2.34 4645
Type W 4/0-2C 4/0 2 259 1.9 2585
Type W 4/0-3C 4/0 3 259 2.02 3360
Type W 4/0-4C 4/0 4 259 2.19 4260
Type W 4/0-5C 4/0 5 259 2.54 5515
Type W 250MCM-3C 250 3 427 2.36 4645
Type W 350MCM-3C 350 3 427 2.5 5225
Type W 500MCM-3C 500 3 427 3 7985

WE CAN:
Cut to your length requirements**
Ship to your Job Site
Ship from Warehouses Nation-Wide



Type W Cable Cord Wire Application:

Type W Portable power cable is  designed for heavy duty temporary or permanent use where maximum resistance to flex fatigue is required. Type W Cable Cord Wire applications in extremely demanding situations including trailing cable on mobile mining equipment, diesel electric locomotives,

lifting magnets, cranes, cutters, loaders, conveyors, drills and pumps where grounded circuits are not required. For use in circuits not to exceed 2000 volts.



*Conductors:

Soft bare annealed copper

*Insulation:

Ethylene propylene diene monomer (EPDM) rubber



*Jacket:

Chlorinated polyethylene (CPE) rubber



*Flame Tests:

MSHA flame test



*Additional Standards:
  • NEMA WC-58
  • MSHA approved
