Oil & Gas Gathering

HDPE 3408 TUBING & PIPE FOR OIL & GAS GATHERING, COAL
BED & LANDFILL METHANE RECOVERY APPLICATIONS

EMAIL OR CALL US FOR PRICING AND AVAILABILITY

1-800-843-6036

Email Us

OnLine Order

Supported Browsers IE, SAFARI, CHROME

PRESSURE PIPE TUBING PRODUCTS

A-D Technologies' Perma-GuardTM/O&G Gathering is extruded using high density polyethylene (PE-3408) resin to produce pipes tubes piping tubing tube pipe

Truckload of 12" HDPE in 40' Sticks

HDPE 3408 TUBING & PIPE FOR OIL & GAS GATHERING, COAL

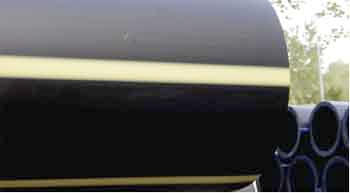

12" Black with Yellow Stripe

Features & Benefits

Excellent ESCR (Environmental Stress
Crack Resistance) properties
Proven track record for long-term pressure
rated strength and performance
Available in a wide range of sizes, DR
ratings and pressure classes
Superior chemical resistance
Lightweight for ease of handling and
installation
Non-Corrosive eliminating the need for
expensive cathodic protection
Outstanding flexibility and crush resistance
Available in coils up to 6" diameter reduces
installation costs

HDPE O&G Pipe to Holding Tank oil gas piping tube tubing

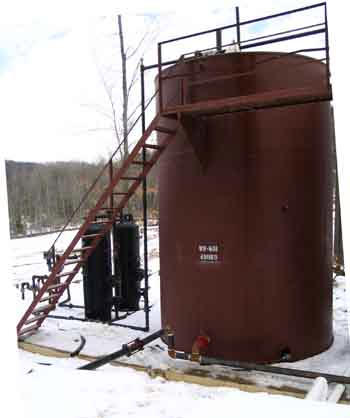

HDPE O&G Pipe to Holding Tank

GENERAL INFORMATION

Perma-GuardTM/ Oil & Gas Gathering tube piping is extruded using high density polyethylene (PE-3408) resin to produce
pipe that is ideally suited for oil and gas gathering, methane recovery and water supply lines. Manufactured in
accordance with ASTM D2513, latest issue, resin materials are carefully chosen to comply with cell classification
345464C for black HDPE pipes, and made in accordance or listed per the following standards:
• Plastics Pipe Institute (PPI) TR-4, latest issue for PE-3408 resin, having a hydrostatic design basis (HDB) of
1600-psi @ 23°C (73°F) and 800-psi at 60°C (140°F).
• American Petroleum Institute’s (API) 15LE, latest edition.

Available Sizes:

Iron Pipe Sizes (IPS) tubing sizes from 1/2" through 12" diameters.

Available Dimensional Ratios (DR) and Pressure Class (PC) Ratings:

Available in 4 standard dimensional ratios (SDR) of 7.0, 9.0, 11.0 and 17.0. Other dimensional ratios can be
made available upon request.
Corresponding working pressure class rating at =73°F for the above DR’s range from 171-psi to 64-psi respectively, for gas applications.
For detailed dimensional, weight and packaging information, see publication dimensional tables.
